Imex i66R Rotating Red Beam Laser Kit - Horizontal only - with Tripod & 5m Staff

Imex i66R Rotating Red Beam Laser Kit - Horizontal only - with Tripod & 5m Staff

Regular price
Sale price
Unit price

Imex i66R Red Beam Rotating Laser Kit - Horizontal only - w/- Tripod & 5m Staff

The class leader in economical rotating laser levels, the IMEX i66R incorporates the robust casing and technology of it’s industry leading big brothers in an efficient simple-to-use package. Featuring a huge 400m dia range, rubber sheath protection and heavy duty lighthouse cover for superior shockproof and weatherproofing the i66R is the leader in value for everyday laser levelling.


  • Calibration Certificate
  • 5 yr Warranty
  • Robust construction tough horizontal laser level.
  • Self levelling (electronic). 400m range.
  • USB quick charge port

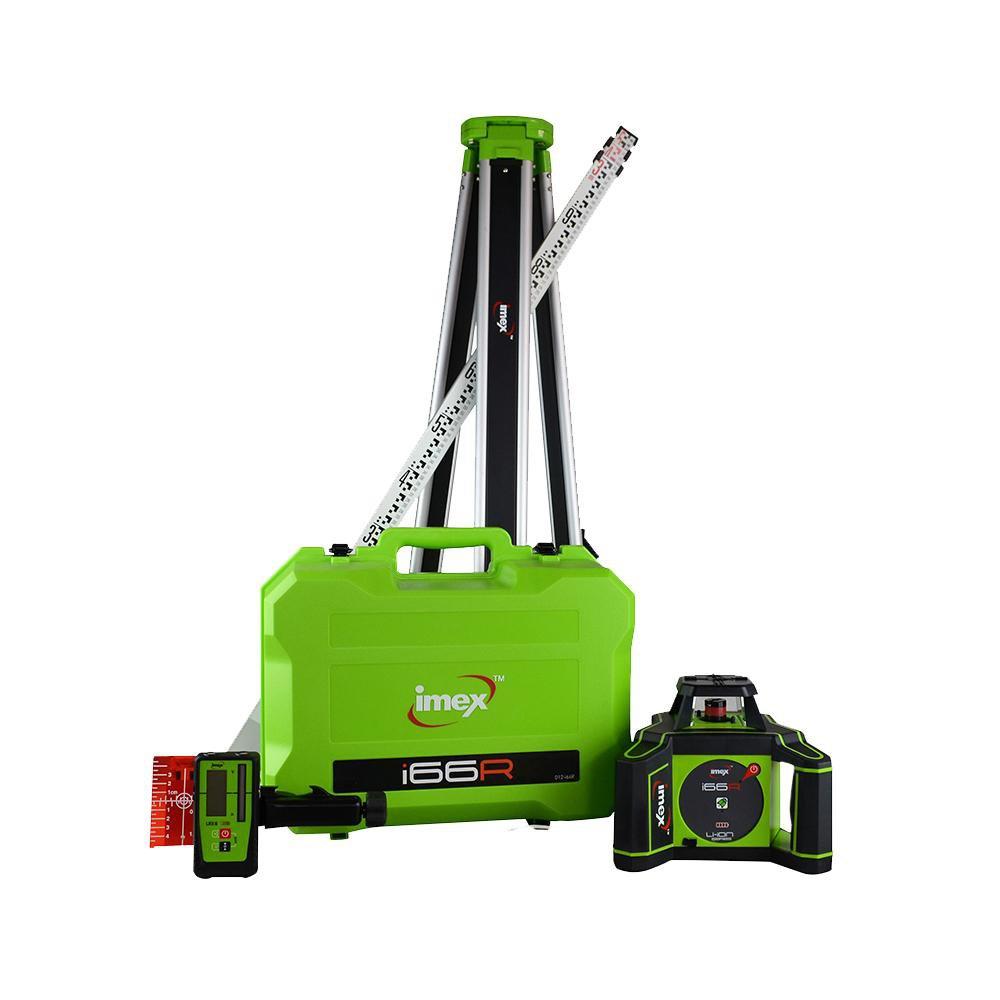

  • Kit includes Imex i66R Unit, LRX6 Detector, USB cable, 9.0 Ah Lithium battery, Car charger, target plate, hard carry case, Tripod and 5m Staff.
  • LRX6 Digital Detector in mm reading - Made in Germany.
  • 60mm Detector reading Fine, Medium and Coarse setting.
  • Latest technology laser diode.
  • Out of level warning light.
  • 30 second set-up time. Place on tripod, press one button and beam begins.
  • Fully enclosed laser housing for extra dust and splash proofing.
  • 9Ah lithium-ion battery – approx 40 hour run time.
Self-Levelling Range +/- 5˚
Light Source 635nm Red Diode
Output Laser Class II
Accuracy +/-2mm @ 30m
Damping Type Magnetic - Self Levelling
Hours of Continuous Use 40 hours approx.
Rotation Speed 600rpm
Working Distance 400m Diameter with included detector
Waterproof/Shockproof IP66
Weight - Unit only 2.48kg
Batteries 9 Ah 3.7v lithium-ion
Charging Time 4 hours in unit or removed from unit
Detector – German Made LRX6 Double Sided
Detector – Pick Up 60mm +30mm to – 30mm
Detector Reading Fine – 1.0mm | Medium – 2.0mm | Course – 5.0mm
Detector Power 1-AA > 50 hrs run
