Horsepower: 505+ hp
TVS2300 Heartbeat supercharger head unit, 6 psi
Fuel Pump Supplied: Not Supplied
Fuel Injectors Supplied: Not Supplied
Computer/Ignition Mods.: Not Supplied
Acoustically designed to minimize noise, vibration, and harshness (NVH)
Internal Bypass Valve virtually eliminates parasitic loss (uses less than 1/3 of a horsepower at 60 mph)
Delivers a proven increase in real world "under the curve" power
High thermal efficiency
2.4 pressure ratio capability
High helix four-lobe rotors with 160 degrees of twist
Redesigned inlet and outlet ports
Utilizes all factory "push-lock" connectors
Displacement on demand hardware retained for improved fuel economy
Components have been independently tested to GM’s specification

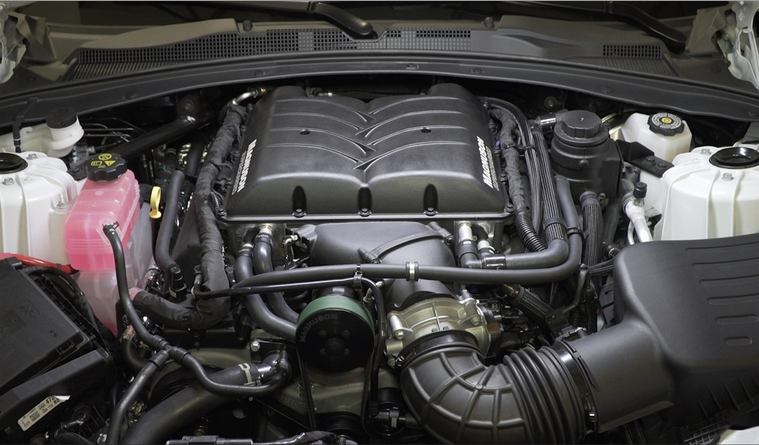

Boost the power output of your 2016 - 2019 Chevrolet Camaro SS 6.2L LT1 while retaining factory-like drivability, fuel economy, and reliability with Magnuson’s TVS2300 Supercharger Kit.
This Non Intercooled / No Calibration (no handheld provided) will deliver tire shredding power of 505+ horsepower and 460+ foot-pounds of torque at the rear wheels and beyond! Besides peak horsepower and torque this supercharger offers significantly enhanced "under the curve" power gains delivering near instantaneous boost and torque upon demand that really puts you back in your seat. The entry level system allows you to upgrade later with our intercooler system at any time!
Maximizing your efficiency during cruising is the job of the supercharger’s integrated bypass valve. This vacuum operated system allows air to bypass the supercharger and the rotors to “free-spin" under light engine loads. During this situation the parasitic loss of the supercharger system is essentially negated taking less than one-third of a horsepower to turn the rotors. This bypass valve also allows your supercharged Camaro SS to maintain stock-like drivability and fuel economy - giving you a package that delivers power without compromise.
Down to the smallest part, our Magnuson Supercharger line of bolt-on supercharger systems are engineered as a complete package. The supercharger, supercharger intake manifold, inlet, pulley, and charge air coolers come pre-assembled to make installation simple and easy while the accessory box is organized into individual sub-assemblies to help ensure that you don’t lose track of parts during your install. All of the hardware needed for a full and complete install is also included so you won’t be running to the local parts store in the middle of your installation. In addition, our full color, step-by-step Installation Manuals will walk you through the install process with exacting attention to detail.
Magnuson’s TVS2300 supercharger utilizes EATON’s latest 6th Generation supercharger rotor technology found in such industry leading performance vehicles as the Corvette ZR-1, the Cadillac CTS-V, and the Mustang GT500. These Twin Vortices Series Superchargers feature a pair of four-lobe, high-helix rotors with 160-degrees of overall twist that are housed in Magnuson’s patented high-flow housing. This highly efficient package requires less power to drive, delivers cooler discharge temperatures, and is much quieter than many of its competitors. These superchargers are all manufactured in our TS16949 certified facility – the highest ISO OEM quality certification standard in the market. Designed to be nearly maintenance free so you won’t have to worry about anything once it is installed.
