Dual channel output, without interference from each other
Support up to 6S balance charging&discharging with 2 output port
5V/2A USB output power from side of the unit, easily charge your mobile phone or other electronic products.
Wide range AC Input, Industrial level power management
Adaptive for all different voltages across the world; By using PFC circuit makes it works more stable and less interference to power grid.(SCP) Short current protection.
(OLP) Over load protection.
(OVP) Over voltage protection.
(OTP) Over Temperature protection
Exceptional performance on the power space ratio.
Compare with similar products, volume reduced by 345%. Power space ratio goes higher to 273Watts/LitreCarefully optimized internal structure, dual fan cooling system
High-speed efficient synchronous digital power supply technology, dual-fan High speed ball-bearing fan promotes active cooling efficiency.scOs Specially designed for smart charging OS
Bright, colorful, easy access set-up and status display. 80% deduction of operation process. Firmware updates can be performed using a personal computer.Multiple Languages
Support English, German, French, Spanish, Japanese, Traditional Chinese and Simplified Chinese. Totally localizedSpecifications
| 1. AC input |
| 2. USB port |
| 3. Update port |
| 4. Balance port for channel 1 |
| 5. Battery port for channel 1 |
| 6. Battery port for channel 2 |
| 7. Balance port for channel 2 |
| 8. Channel 1 select button |
| 9. Channel 2 select button |
| 10. 2.4”IPS display |
| 11. Speed shuttle key |
Description:
Input Voltage: AC 100-240V
Charge Current: 0.1-10.0A*2
Discharge Current: 0.1-3.0A*2
Max Charge Capacity: 200W
Max Discharge Capacity: 5W*2
Balancing Current: 1A/cell*2
Balance Cells: 2-6S*2
Supported Batt. Type: LiFe/Lilon/LiPo/LiHv (1-6S)
NiMH/Cd(1-16S)
Pb(1-12S)
Display: 2.4〃320×240 IPS LCD
Operating Temperature: 0-40°C
Storage Temperature: -20-60°C
Dimensions: 120x1080x70 mm
Weight: 510g
Manual:
Package Included:

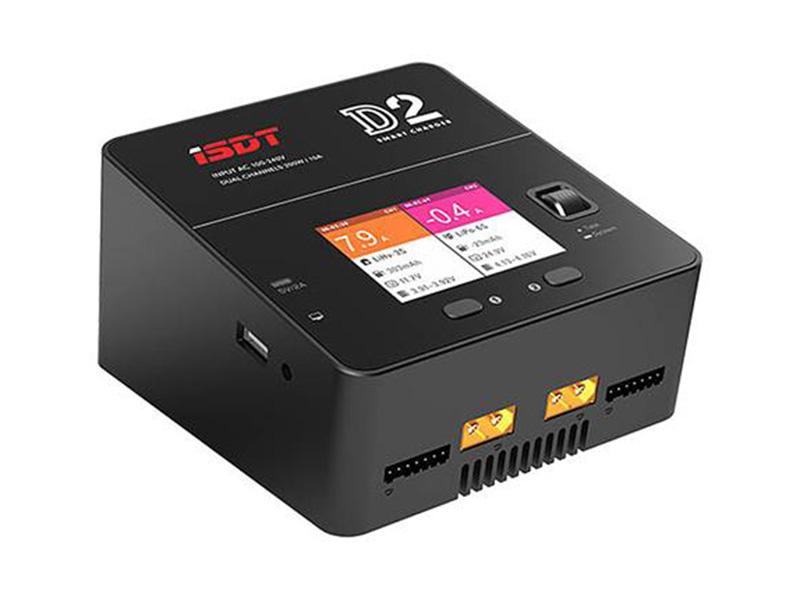

1 x ISDT D2 Charger
1 x AC Input Cable
